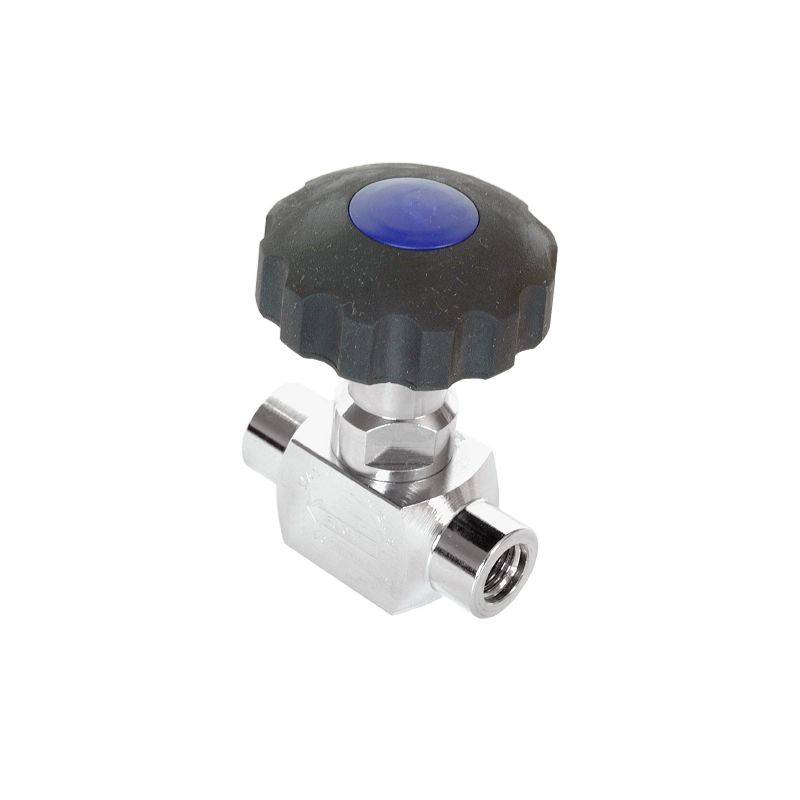

High pressure needle valve 414bar G1/4 BSP female
High pressure needle valve 414bar G1/4 BSP female

High pressure needle valve 414bar G1/4 BSP female

€175.00
Tax included
Price excluding tax / DOM-TOM €145.83
TEK2F000

High pressure needle valve

  • Valve working pressure: 414bar (6000psi)
  • Outlet connections: G1/4 BSP female
  • Material: chrome plated brass
  • Compatibility: AIR and Nitrox 40%.
Shipping
Free Shipping From 89 € for France * * See conditions
Product return & exchange 14 days to change your mind
24/7 support 24/7 customer return guaranteed
100% secure payment By credit card, bank transfer, PayPal or check
High pressure needle valve 414bar G1/4 BSP female

High pressure needle valve 414bar G1/4 BSP female

This valve is made of chrome plated brass with bronze-aluminum ball. The valve is ideal for use on compressor panels or for managing a rack of buffer cylinders.

The valve has a large elastomer handwheel for easy gripping.

Technical specifications of the needle valve :

  • Working pressure: 414 bar (6000 psi)>
  • Inlet and outlet connection: 1/4" BSP female
  • Body material: chrome plated brass
  • Ball material: bronze-aluminum
  • Compatible with air and nitrox 40%.

Dimensions of the needle valve 414bar :

  • Total length: 65 mm
  • Height (with handle): 86 mm
  • Width: 28 mm
